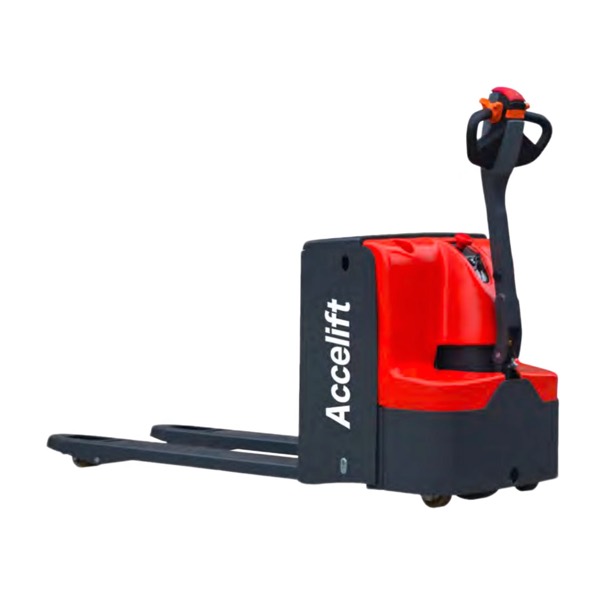

Electric Walkie Pallet Jack SL20GE

Electric Walkie Pallet Jack SL20GE

Rated capacity: 2000 kg
Lift height: 200 mm
Turning radius: 1556 mm
Noise level: ≤70 dB(A)

Ask for a price, lead time, battery options or the full spec sheet. Factory-direct, OEM branding available.

Email us about this model

Download PDF spec sheet

Description

Electric Pallet Truck · Pedestrian

SL20GE

Electric Pallet Truck (Pedestrian)

An AC-driven pallet truck with an imported controller and a Germany ZF vertical gearbox, built for pedestrian operation with a long handle for easy, flexible use.

2000 kg Rated capacity	200 mm Lift height	1556 mm Turning radius	≤70 dB(A) Noise level

Key features

01	Imported AC controller paired with a Germany ZF vertical gearbox.
02	A strong, effective AC drive system delivers superior acceleration, improving job efficiency while saving energy.
03	A uniquely long handle keeps operation easy and flexible.
04	Balance wheels on both sides add stability and help protect the floor surface.
05	Grooves on the battery case cover and mask hold tools, water cups and other small items.

Main technical parameters

Parameter	Unit	SL20GE
Characteristics
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (kg)	2000
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	962
Wheel base	y (mm)	1388
Service weight with battery	kg	520
Wheels / tyres
Wheels type		PU
Driving wheel size	Φ×w (mm)	Φ230×75
Bearing wheel size	Φ×w (mm)	Φ80×70
Additional wheels	Φ×w (mm)	Φ100×40
Wheels, front/rear (x=driven)		1x+2/4
Track width	b11 (mm)	390/525
Dimensions
Lift	h3 (mm)	200
Overall height (with handle)	h14 (mm)	825/1278
Min. height of cargo fork	h13 (mm)	85
Overall length	l1 (mm)	1742
Length to fork face	l2 (mm)	592
Overall width	b1/b2 (mm)	700
Fork dimensions	s/e/l (mm)	50/160/1150
Width of forks	b5 (mm)	550/685
Min. ground clearance	m2 (mm)	35
Aisle width, pallet 1000×1200 across forks	Ast (mm)	1944
Aisle width, pallet 800×1200 along forks	Ast (mm)	1994
Min. turning radius	Wa (mm)	1556
Performance
Travel speed, laden/unladen	km/h	4.2/4.5
Lifting speed, with/without load	mm/s	21/27
Lowering speed, with/without load	mm/s	38/38
Max. climbing ability, with/without load	%	8/15
Service brake		Electromagnetic
Drive
Drive motor, 60 minute rating	kW	1.3
Lift motor rating at S3 15%	kW	0.8
Battery voltage/rated capacity	V/Ah	24/210
Battery weight (±5%)	kg	190
Other
Type of drive control		AC
Noise level at operator’s ear	dB(A)	≤70
Type of steering		Mechanical
